Chilling wort rapidly after the boil is one of the most important steps in producing clean, infection-free beer. The window between flameout and fermentation temperature is when hot wort is most vulnerable, still too hot for most microorganisms, but cooling through the temperature range where wild yeast and bacteria thrive. Getting through that range quickly (ideally under 20 minutes) is the goal of wort chilling. I’ve used all three major chiller types over the years and can give honest comparisons based on actual performance, not just specs. The right choice depends on your water situation, batch size, and how much time you want to spend chilling.
Immersion wort chillers
How they work

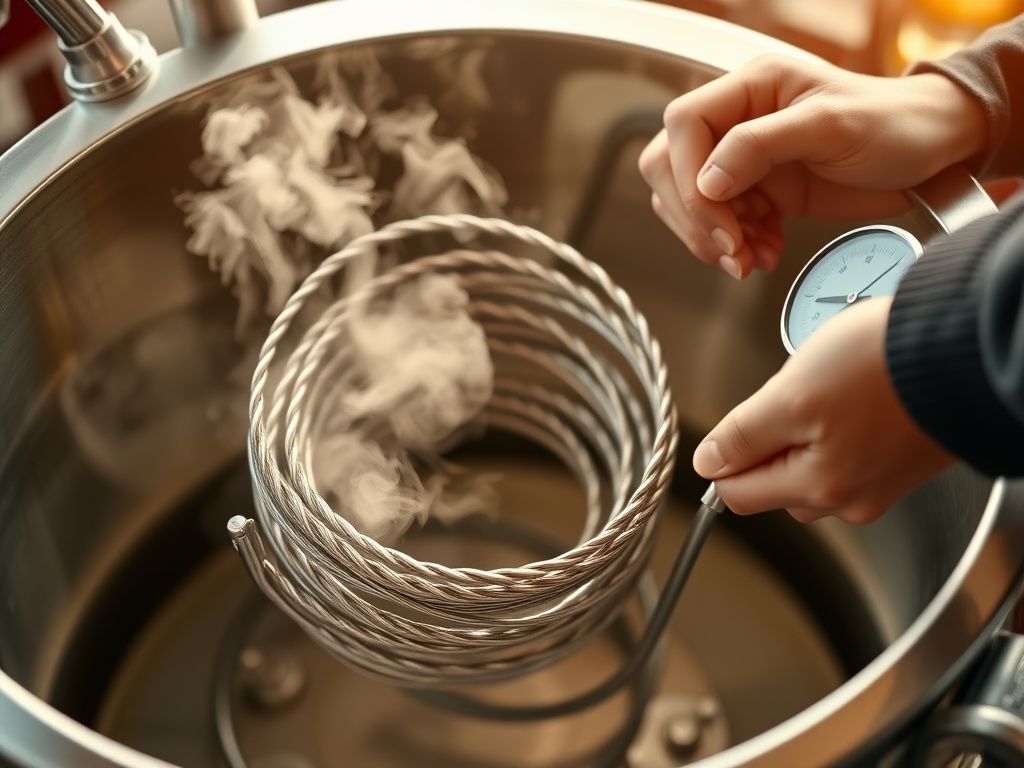

A coil of copper or stainless tubing submerged in the hot wort. Cold water flows through the coil, absorbing heat from the wort. The wort cools by convection (stirring helps significantly) as heat transfers from the wort through the tube wall to the cooling water.
Performance and recommendations
A 25-foot copper immersion chiller cools 5 gallons from boiling to 70°F in 15–25 minutes with cold tap water (55°F). A 50-foot chiller cuts that time to 10–15 minutes. Stirring the wort around the coil during chilling improves heat transfer significantly, without stirring, you create a warm boundary layer around the coil that reduces performance. The NY Brew Supply and Duda Energy copper immersion chillers are reliable budget choices at $30–50 for 25-foot versions. For brewers in warm climates where tap water doesn’t get below 70°F, a pre-chiller (a second coil in an ice bath that pre-cools the incoming water before it enters the main chiller) dramatically improves performance in summer.
Pros and cons
- Pros: Simple, inexpensive ($30–80), easy to clean (sanitize by submerging in the wort for the last 15 minutes of the boil), no hoses to manage after wort is cooled, no trub transfer risk.
- Cons: Slowest of the three chiller types; requires stirring for best performance; uses more water than counterflow or plate chillers (15–30 gallons per 5-gallon batch).
Counterflow wort chillers
How they work
Hot wort flows through an inner tube while cold water flows in the opposite direction through a surrounding outer jacket. The counterflow design creates a heat exchange at every point along the chiller’s length, the wort enters hot and exits cool, chilled throughout its transit rather than via a surface submerged in a static wort mass.
Performance and recommendations
Counterflow chillers are significantly faster than immersion at equivalent water usage, they can chill 5 gallons through in 5–10 minutes of pump transit. The Shirron Plate Chiller and similar tube-in-tube counterflow designs (Blichmann Therminator, copper DIY models) are popular at $60–150. The main counterflow challenge is cleaning, the inner tube is inaccessible for physical cleaning and must be flushed thoroughly with hot PBW and rinsed after every use to prevent trub buildup that can harbor bacteria.
Pros and cons
- Pros: Fast chilling; lower water usage per batch than immersion; wort exits chilled and ready to transfer directly to fermenter in one step.
- Cons: More complex cleaning; risk of clogging with hop material (use a hop spider or strainer on the kettle outlet); more connections and hoses to manage; higher cost than immersion.
Plate wort chillers
A stack of stainless plates with alternating hot and cold channels, extreme surface area in a compact package. The Blichmann Hop Rocket/Therminator and Chinese-made 20–40 plate chillers ($40–150) can chill 5 gallons in 2–5 minutes at good water flow. Plate chillers are the most efficient but most prone to clogging, any hop material reaching the chiller creates a blockage. Use exclusively with a hop spider or whirlpool setup that keeps hop material in the kettle. Cleaning requires backflushing and PBW soaking, more involved than immersion.
Common Questions
Which chiller is best for water conservation?
Counterflow and plate chillers use significantly less water than immersion chillers when chilling to the same temperature in the same time. An immersion chiller running continuously uses 15–30 gallons of water per 5-gallon batch; a counterflow at the same chilling rate uses 5–10 gallons. For brewers concerned about water conservation (living in drought-prone areas or with high water costs), counterflow or plate is clearly preferable. However, the water from all three chiller types exits warm, it can be collected and repurposed for cleaning, garden irrigation, or laundry pre-soak, which effectively reduces the “wasted” water to zero regardless of chiller type. Collecting the chiller outflow in buckets and reusing it is a simple conservation practice compatible with any chiller.
