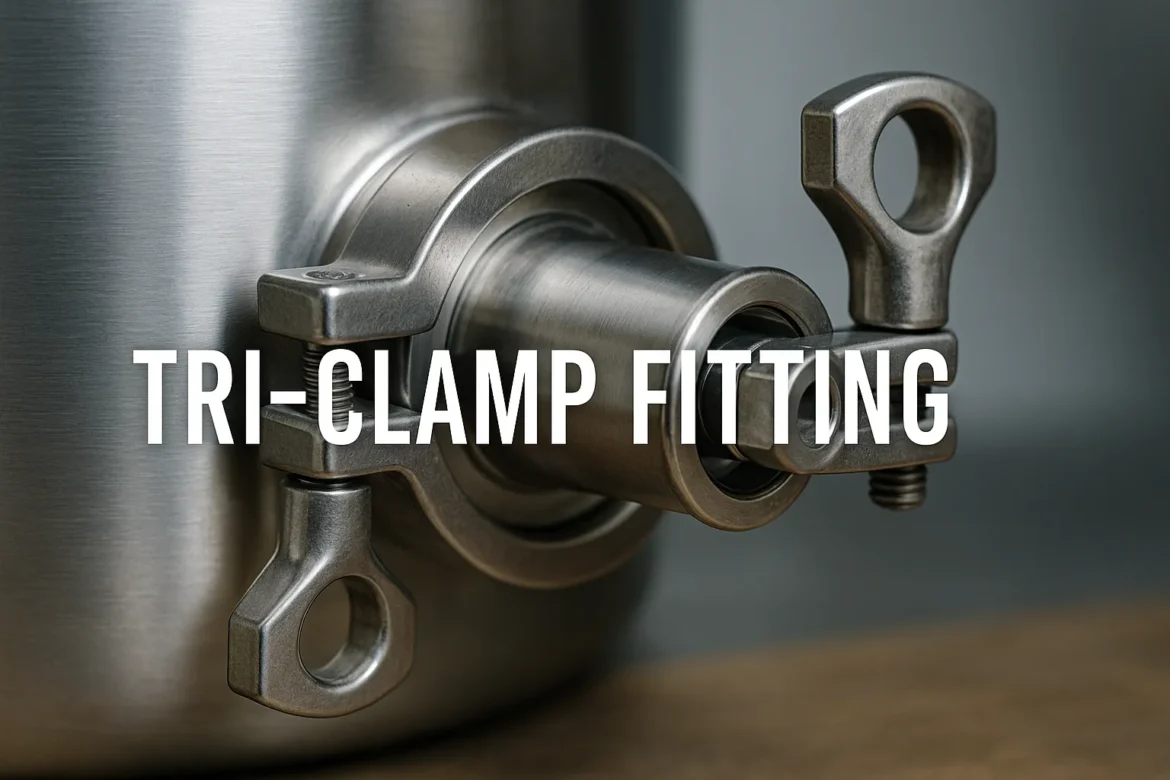

Tri-Clamp Fitting Installation Guide

Last updated: May 13, 2026

Tri-clamp fittings are the standard connection system for professional and semi-professional brewing equipment, they provide a hygienic, tool-free connection between vessels, pumps, valves, and fittings that can be assembled and disassembled in seconds and cleaned to sanitary standards. I converted my homebrewing setup to tri-clamp (also called tri-clover or TC) connections after building my first stainless conical fermenter, and the improvement in both sanitation and flexibility was significant. Installing tri-clamp ferrules correctly on stainless vessels is the foundational skill for any serious equipment build.

Understanding tri-clamp sizing

Tri-clamp fittings are sized by the OD of the ferrule (the welded stub), not the internal bore diameter. The most common homebrew sizes:

• 1.5″ TC: Most common for homebrew. 1.5″ clamp fits ferrules with 1.984″ OD. Used for drain ports, pump connections, most transfer fittings.
• 2″ TC: Larger flow applications, kettle inlet/outlet in high-flow systems, larger conical fermenter ports.
• 3″ TC: Manway ports, larger openings for cleaning access.

The clamp size is stamped on the clamp itself and must match the ferrule OD. Mismatched clamp sizes won’t close properly and can’t provide a secure seal. Always buy the gasket, ferrule, and clamp as a matched set initially to avoid compatibility issues.

Installing ferrules: weld-on vs. weldless

Weld-on ferrules (professional standard)

A stainless ferrule stub TIG-welded to the vessel wall creates a permanent, hygienic, fully cleanable connection. The weld should be continuous (no gaps), then the inside of the weld bead should be ground smooth to eliminate crevices where bacteria can harbor. Process: mark port location, cut hole with step drill or hole saw matching the ferrule OD, deburr all edges, insert ferrule from outside, tack weld at 4 points to hold position, complete the circumferential weld from the outside. Passivate the weld with citric acid solution after welding to restore the stainless chromium oxide layer disrupted by welding heat.

Weldless fittings (no welding required)

Weldless tri-clamp fittings use a threaded stub that passes through the vessel wall, with a large flange inside, a silicone gasket against the vessel wall, and a nut tightened from outside. No welding required. These are adequate for most homebrew applications and achieve a reliable seal. The limitation: the inside flange is a crevice that’s more difficult to clean than a welded-and-ground joint, and they’re not suitable for high-pressure applications. For fermenters operating at standard atmospheric pressure with CO2 blanket, weldless fittings work well. For pressure fermenters (above 5 PSI), use welded fittings.

Gasket selection

Silicone gaskets are the standard for brewing: food-grade, temperature-resistant to 450°F/230°C, compatible with sanitizers and cleaning chemicals, and durable with proper care. EPDM (ethylene propylene diene monomer) gaskets are an alternative with better resistance to some cleaning chemicals but are not compatible with petroleum-based oils. Replace gaskets when they show cracking, flattening, or discoloration, a compromised gasket is a contamination risk. Carry spares of your most-used sizes.

Assembly and torque

Tri-clamp assembly: seat the gasket in one ferrule groove, align the second ferrule, position the clamp halves around both ferrules, and close the wing nut finger-tight then an additional 1/4 turn. Do not over-tighten, the gasket should compress slightly but not extrude out from between the ferrules. Over-tightened clamps distort the gasket and create leak points; properly torqued clamps seal completely with hand-tight closure. If a properly assembled clamp leaks, inspect the gasket for damage or debris before increasing torque.

Common Questions

Are all tri-clamp fittings compatible across brands?

Standard 3A (sanitary) tri-clamp fittings follow dimensional standards that make them cross-compatible across manufacturers for the same nominal size. A 1.5″ clamp from one brand will fit 1.5″ ferrules from any other brand that follows the 3A standard. The main compatibility issue is non-standard sizing from inexpensive suppliers, some imported fittings use slightly different OD dimensions that prevent a proper seal even though they appear to be the same size. When building a system, buy all ferrules, clamps, and accessories from suppliers that explicitly state 3A or ISO 2853 compliance for guaranteed cross-compatibility.
